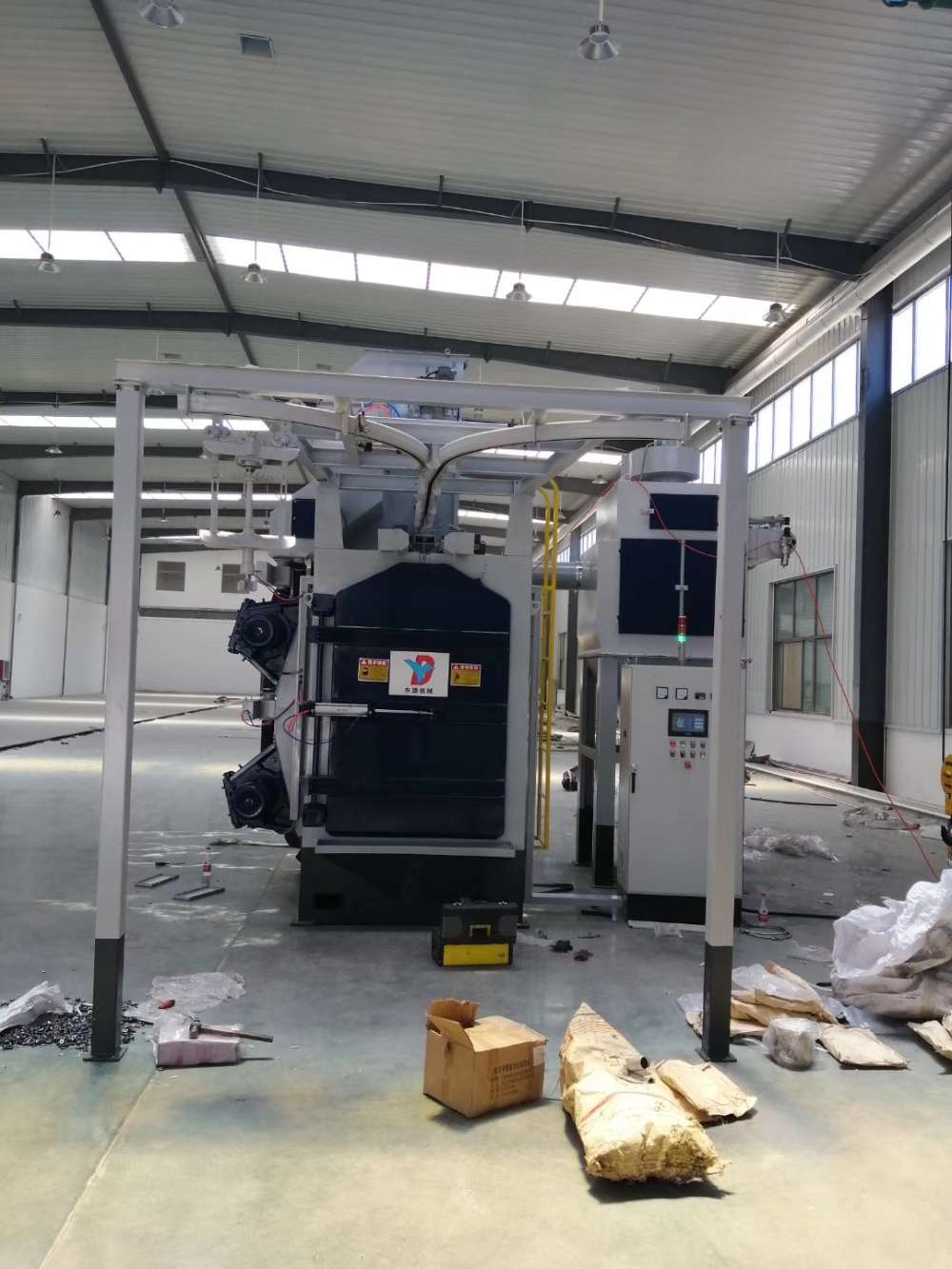

YXD-10/12 Hanger type shot blasting machine

Model Parameter

YXD-10/12

YXD-12/16

YXD-12/20

The number of shot blasting heads

Unit

2

2

3

Power of shot blasting machine

KW

2*7.5

2*11

3*11

The diameter of workpiece

mm

1000

1200

1200

The height of workpiece

mm

1200

1600

2000

The carrying capacity of hook

kg

300

500

800

Blasting capacity

kg/min

2*120

2*140

43*140

First loading quantity of steel shot

kg

350

450

600

Ventilation volume

m³/h

2500

3600

4300

Compressed air consumption

m³/h

8

9

12

Core tube air consumption of dust removal

m³/h

6

6

9

Air consumption of valve and door of shot blasting machine

m³/h

2

3

3

The pressure of compressed air

Bar

5-7

5-7

5-7

Total Power

KW

22

29

42
