I. Main Technical Parameter:
1. Overall dimension of the machine: about 1850mm×1450mm×1700mm
2. Loading height： 835mm
3. Washing basket
Diameter： φ1000mm
The load capacity: 200kg
4. Total weight of the machine: 650kg
5. Water pump
Lift pump： 32m
Flow rate: 20m3/h
Power: 4KW
6. Heating tube: 3×7KW
7. Gas Spring
Model: DQ 19
Stroke: 300mm
8. Water temperature: Continuously adjustable from room temperature to 70 ° C
9. Total power: ≈25KW
10. Voltage: 380V/ 3Ph/ 50Hz
11. Color : As you want ( Customized )
Ⅱ. Introduction and function:
DY-1000 Parts washing machine is designed on the basis of studying high quality domestic and international washing machines, with excellent performance. It’s the general-purpose cleaning equipment in the cleaning machinery industry currently. It’s compact, handsome in appearance, complete functions, wide application, good cleaning effect, can meet the cleaning requirements of a variety of metals, non-metallic parts.
Ⅲ. Working principle:
Oil pollution on the surface of workpieces to be cleaned, will be wet, soft, separated, after the power of chemical action, the water spray of washing machine, and manual brushing and washing. The stream impacts surface of workpieces to produce the normal force and tangential force, to cause the broken, peeling, shedding of dirty layer. The workpieces dirt particles will be taken away, when cleaning solution flows along the workpieces. Finally, to achieve the purpose of cleaning.

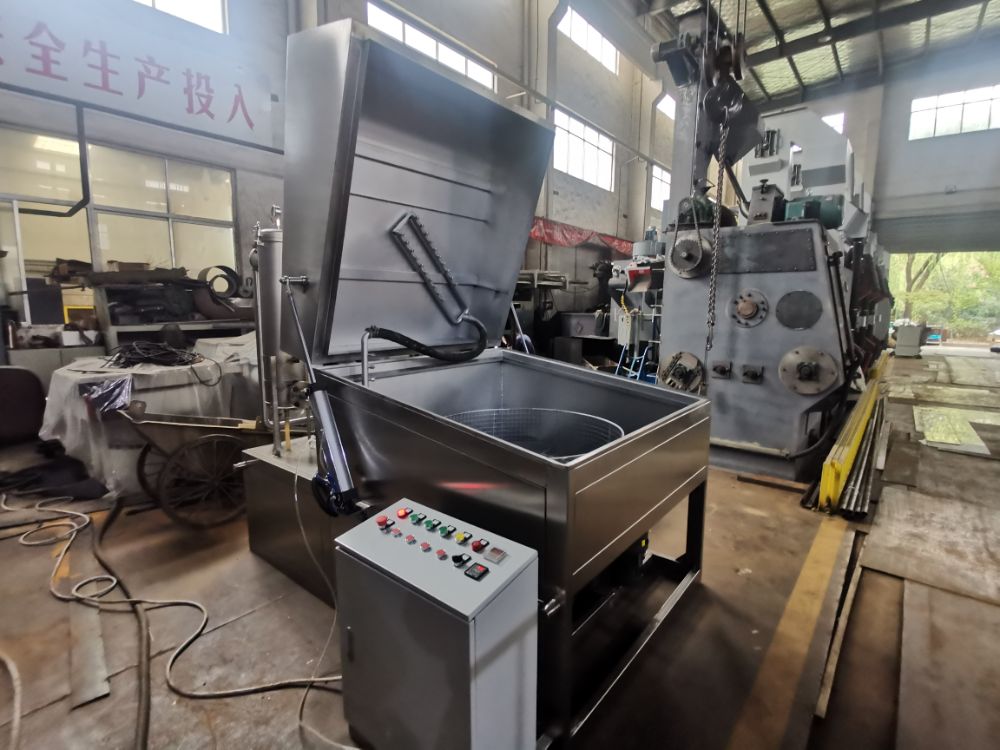

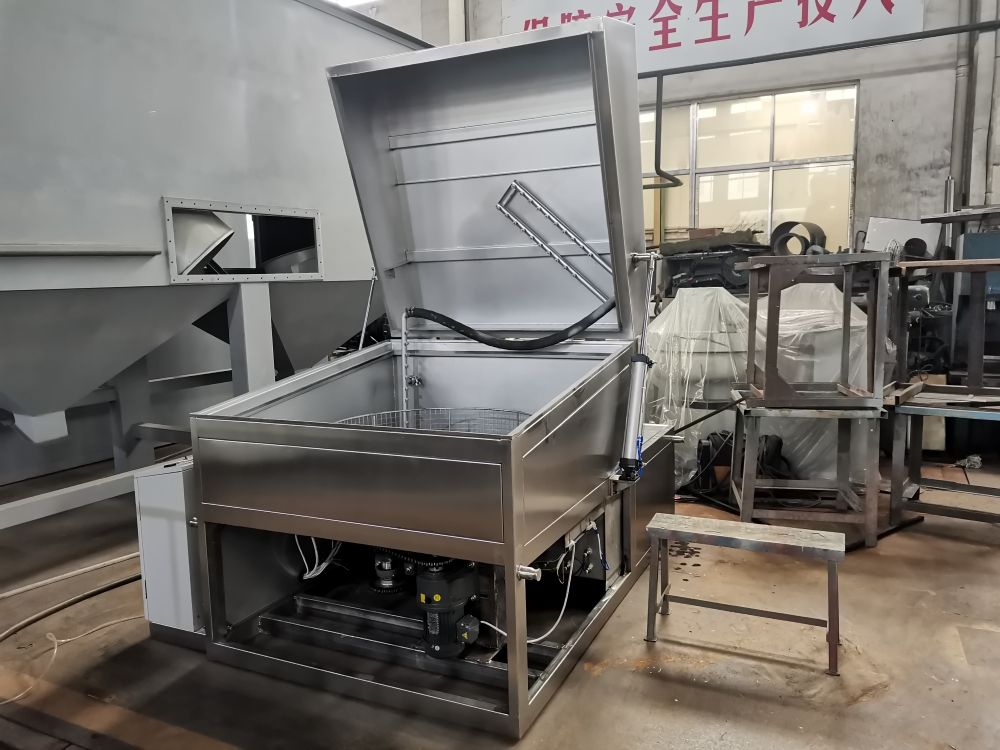

IV. The structure and composed devices:
The composed device:
1. Cover
2. Centrifugal pump
3. Filter
4. Water tank
5. Washing basket seat
6. Nozzle
7. Gas spring
8. Heating tubes
9. Hinge
10. Electrical cabinet
The centrifugal pump adds pressure to cleaning liquid in the tank when in working. The cleaning liquid erupts through the nozzle which setting in the cleaning cabinet, to clean the workpieces in the cleaning bucket. At the same time, make the cleaning bucket to rotary by the spraying high pressure water stream. To ensure the workpieces in the cleaning bucket been cleaned fully. Cleaning fluid returns back to the cleaning cabinet by filter. Cleaning liquid can be reused, water consumption, less consumption agents, high degree of automation, low water consumption, low reagent consumption. Cleaning time uses instrument to control. Workbench automatic rotates by the force of water. Easy to operate, very convenient.
